Tile Finder "MAX" Reel - 7/16" Fiberglass Rod (750' & 1000') for Heavy-Duty Field Tile Locating
"We're excited to hear from you!”
FOR CURRENT PRICING AND MORE INFORMATION SEND US AN EMAIL, OR CALL (515) 685-2818
IN STOCK & AVAILABLE FOR IMMEDIATE DELIVERY! CHECK WHERE TO BUY IN YOUR AREA
Product Description:
The Tile Finder "MAX" Reel is a heavy-duty solution designed for professionals needing to locate underground pipes and field tile systems in demanding conditions.
Featuring a robust 7/16" fiberglass-reinforced inductive rod with a copper core, it excels in maintaining and repairing clay, concrete, PVC, corrugated, and metallic pipes over 1" in diameter.
Available in 750', and 1000' lengths, this reel offers extended reach for large-scale projects.
Our next-generation rod is exceptionally rigid yet flexible, ensuring accurate navigation through various pipe types.
This new addition to our product line is designed for extreme durability and efficiency, and also has the option for a power rewind, and includes the newly designed high traction low tension rewind drive wheel.
Key Features:
7/16" fiberglass-reinforced inductive rod with copper core.
Available in 750', and 1000' lengths for maximum reach.
Extremely rigid yet flexible rod for navigating diverse pipe materials.
Sturdier reinforced frame for exceptional durability.
Grease-able pillow block bearings for smooth operation.
Cord-friendly, always-connected slip ring.
Custom tension brake & reel stop for precise control.
Available power rewind option for effortless retrieval.
40" Drum.
Newly designed High Traction Low Tension Rewind Drive Wheel.
Specifications:
Rod Diameter: 7/16"
Rod Material: Plastic Coated Fiberglass-reinforced with copper core
Reel Length Options: 750' & 1000'
Pipe Compatibility: Clay, concrete, corrugated, PVC, and metallic pipes over 1" diameter
Drum Size: 40"
Weight: 750' (150 lbs.), 1000' (180 lbs.)
Rewind option: Manual or Power.
Made Specifically For:
Agricultural Professionals (Large-scale projects)
Drainage Contractors (Extensive systems)
Land Surveyors (Complex mapping)
Professionals requiring heavy duty pipe/tile locating
PROTECT YOUR INVEST - PLEASE BE MINDFULL OF ALL SAFETY, WARNING AND INSTRUCTION STICKERS!
"We're excited to hear from you!”
FOR CURRENT PRICING AND MORE INFORMATION SEND US AN EMAIL, OR CALL (515) 685-2818
IN STOCK & AVAILABLE FOR IMMEDIATE DELIVERY! CHECK WHERE TO BUY IN YOUR AREA
Product Description:
The Tile Finder "MAX" Reel is a heavy-duty solution designed for professionals needing to locate underground pipes and field tile systems in demanding conditions.
Featuring a robust 7/16" fiberglass-reinforced inductive rod with a copper core, it excels in maintaining and repairing clay, concrete, PVC, corrugated, and metallic pipes over 1" in diameter.
Available in 750', and 1000' lengths, this reel offers extended reach for large-scale projects.
Our next-generation rod is exceptionally rigid yet flexible, ensuring accurate navigation through various pipe types.
This new addition to our product line is designed for extreme durability and efficiency, and also has the option for a power rewind, and includes the newly designed high traction low tension rewind drive wheel.
Key Features:
7/16" fiberglass-reinforced inductive rod with copper core.
Available in 750', and 1000' lengths for maximum reach.
Extremely rigid yet flexible rod for navigating diverse pipe materials.
Sturdier reinforced frame for exceptional durability.
Grease-able pillow block bearings for smooth operation.
Cord-friendly, always-connected slip ring.
Custom tension brake & reel stop for precise control.
Available power rewind option for effortless retrieval.
40" Drum.
Newly designed High Traction Low Tension Rewind Drive Wheel.
Specifications:
Rod Diameter: 7/16"
Rod Material: Plastic Coated Fiberglass-reinforced with copper core
Reel Length Options: 750' & 1000'
Pipe Compatibility: Clay, concrete, corrugated, PVC, and metallic pipes over 1" diameter
Drum Size: 40"
Weight: 750' (150 lbs.), 1000' (180 lbs.)
Rewind option: Manual or Power.
Made Specifically For:
Agricultural Professionals (Large-scale projects)
Drainage Contractors (Extensive systems)
Land Surveyors (Complex mapping)
Professionals requiring heavy duty pipe/tile locating
PROTECT YOUR INVEST - PLEASE BE MINDFULL OF ALL SAFETY, WARNING AND INSTRUCTION STICKERS!
"We're excited to hear from you!”
FOR CURRENT PRICING AND MORE INFORMATION SEND US AN EMAIL, OR CALL (515) 685-2818
IN STOCK & AVAILABLE FOR IMMEDIATE DELIVERY! CHECK WHERE TO BUY IN YOUR AREA
Product Description:
The Tile Finder "MAX" Reel is a heavy-duty solution designed for professionals needing to locate underground pipes and field tile systems in demanding conditions.
Featuring a robust 7/16" fiberglass-reinforced inductive rod with a copper core, it excels in maintaining and repairing clay, concrete, PVC, corrugated, and metallic pipes over 1" in diameter.
Available in 750', and 1000' lengths, this reel offers extended reach for large-scale projects.
Our next-generation rod is exceptionally rigid yet flexible, ensuring accurate navigation through various pipe types.
This new addition to our product line is designed for extreme durability and efficiency, and also has the option for a power rewind, and includes the newly designed high traction low tension rewind drive wheel.
Key Features:
7/16" fiberglass-reinforced inductive rod with copper core.
Available in 750', and 1000' lengths for maximum reach.
Extremely rigid yet flexible rod for navigating diverse pipe materials.
Sturdier reinforced frame for exceptional durability.
Grease-able pillow block bearings for smooth operation.
Cord-friendly, always-connected slip ring.
Custom tension brake & reel stop for precise control.
Available power rewind option for effortless retrieval.
40" Drum.
Newly designed High Traction Low Tension Rewind Drive Wheel.
Specifications:
Rod Diameter: 7/16"
Rod Material: Plastic Coated Fiberglass-reinforced with copper core
Reel Length Options: 750' & 1000'
Pipe Compatibility: Clay, concrete, corrugated, PVC, and metallic pipes over 1" diameter
Drum Size: 40"
Weight: 750' (150 lbs.), 1000' (180 lbs.)
Rewind option: Manual or Power.
Made Specifically For:
Agricultural Professionals (Large-scale projects)
Drainage Contractors (Extensive systems)
Land Surveyors (Complex mapping)
Professionals requiring heavy duty pipe/tile locating
PROTECT YOUR INVEST - PLEASE BE MINDFULL OF ALL SAFETY, WARNING AND INSTRUCTION STICKERS!
The MAVERICK tile finding system is very simple to use. The reel is used for locating the route of underground duct, plastic pipes or clay tiles. This makes it an excellent tool for maintenance and repair of field tile networks. It contains various length of various sizes of rod that is rigid, yet flexible enough to guide into nonmetallic and metallic pipes that are over 1” in diameter. There is a terminal connection and a tension brake on the “V2’ & “MAX” for slowing down or stopping reel rotation.

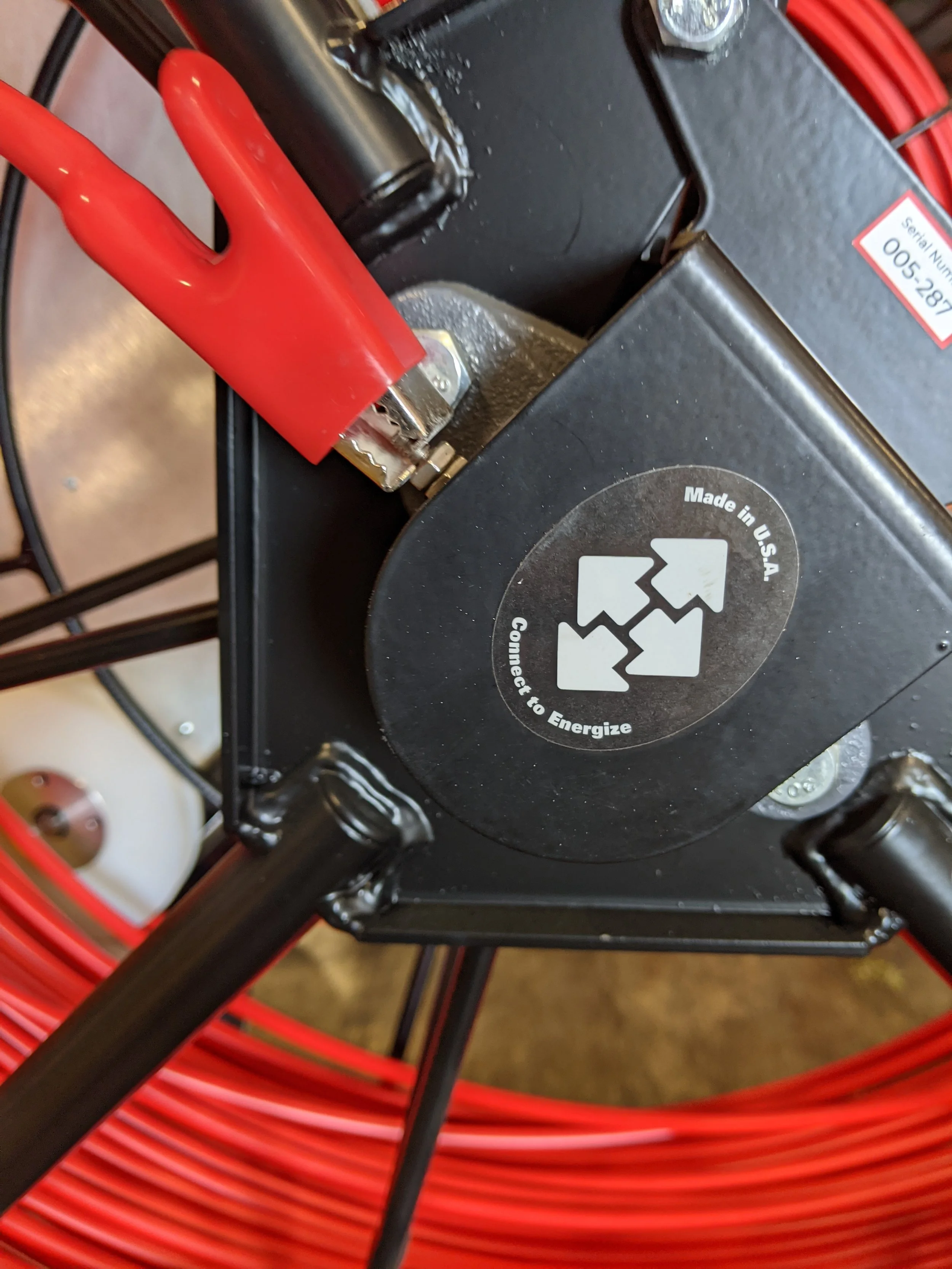

After inserting the rod into the pipe, apply the 82 kHz signal from the direct connection lead of the transmitter to the terminal and connect the other lead of the transmitter to a ground probe, which then energizes the copper wire in the rod. Turn on your receiver, listen for tone, begin marking both your path and depth.
REEL WARRANTY
30 Day Warranty from date of delivery against defects in material and workmanship on frame components. This warranty is void if, after having received the instrument in good condition, it is subjected to abuse, unauthorized alteration or casual repair. We will repair or replace products that prove to be defective during the warranty period. NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. THE WARRANTY DESCRIBED IN THIS PARAGRAPH SHALL BE IN LIEU OF ANY OTHER WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. WE ARE NOT LIABLE FOR CONSEQUENTIAL DAMAGES.
ROD WARRANTY
There is no implied warranty on rod. Read and follow warning labels on reel. Rod is guaranteed to be free of defects at time of delivery. If defects are found prior to or time of first use we must be notified right away. This warranty is void if, after having received the instrument in good condition, it is subjected to abuse, unauthorized alteration or casual repair. We will repair or replace products that prove to be defective during the warranty period. NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. THE WARRANTY DESCRIBED IN THIS PARAGRAPH SHALL BE IN LIEU OF ANY OTHER WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. WE ARE NOT LIABLE FOR CONSEQUENTIAL DAMAGES.
WARNING! READ!
This tool is designed to detect electromagnetic fields emitted from cables and buried metallic utilities. There are buried cables, pipes, and utilities this instrument CANNOT detect. LOCATING is not an exact science. The only certain way to be sure of the existence, location, or depth of buried utilities is to carefully expose (dig up) the utility.
WARNING! Use this tool only for the intended purpose as described in this manual. Failure to follow these warnings could result in serious injury or death.
SHOCK HAZARD! Lethal voltages may be present at the transmitter's output. Turn off the transmitter before touching test lead or any un-insulated conductor. Make connection to ground and target conductor before turning on transmitter. Do not connect to live voltage or active utility lines. De-energize any circuits in or around the work area. Do not connect to utilities, cables or pipes without authorization and training. Only persons who understand, are qualified, licensed and trained in utility locating may use this equipment in that capacity.
HAZARDOUS ENVIRONMENT! Do not expose yourself to hazardous chemicals, hazardous gas, or explosive environment. Do not connect to utilities, cables or pipes without authorization and training. Only persons who understand, are qualified, licensed and trained in utility locating may use this equipment in that capacity.
NATURAL GAS! Be aware of the presence of NATURAL GAS. No location should ever be assumed, or work performed without the consultation of proper authority, authorization, and supervision!
IMPORTANT! Follow appropriate safety procedures, your companies’ policies, safety codes and all laws. CALL “811” BEFORE YOU DIG!
WATER RESISTANCE! This equipment is designed with a level of water resistance. Like all electronic devices, it is best to avoid exposure to rain or moisture. In the event of exposure, dry the unit off and store in a dry place with the case open for at least 24 hours. The housing on both the receiver and transmitter are production sealed. That seal will be compromised if units are disassembled for any reason.
OPERATIONAL ASSISTANCE! Consultation and use of this unit are available by calling Maverick, Inc. at (800) 685-2818
